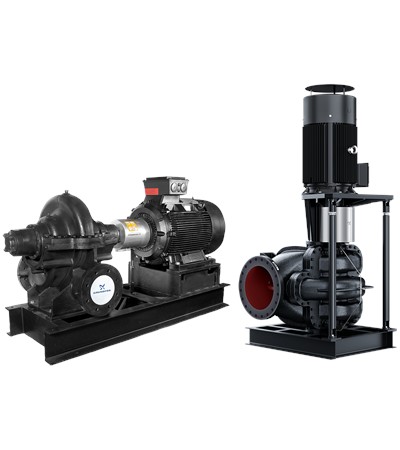

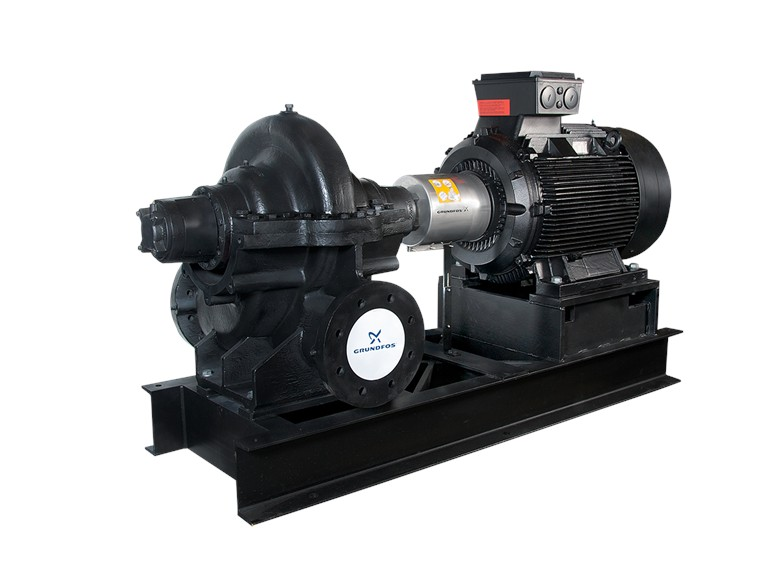

Pompa Grundfos LS LSV – Split Case Centrifugal Pump Batam

  • Max Flow Rate: Up to 12,000 m³/hr
  • Max Head: Up to 170 m
  • Motor Power: 7.5 – 1,250 kW
  • Connection Size: DN 100 – DN 700
grundfos

Description

Engineering Application & Overview

The Grundfos LS (horizontal split case) and LSV (vertical split case) Series represent the pinnacle of high-capacity centrifugal pump engineering for large-scale industrial and municipal applications. The axially split casing design — a hallmark of heavy-duty pump engineering — allows complete rotor assembly inspection and replacement without disturbing the pipe connections, dramatically reducing planned maintenance downtime. The double-entry impeller design self-cancels axial thrust forces, enabling extremely long bearing lifespans under sustained high-capacity operation. Critical applications include: fire fighting systems at Batam Free Trade Zone industrial estates, large-volume cooling water circulation in power generation plants, municipal raw water abstraction and treatment at PT Air Batam Hulu, and high-volume ballast water management at major Kepulauan Riau shipyards including PaxOcean and Marco Polo Marine.

Technical Specifications Table

Parameter Specification
Series LS (Horizontal), LSV (Vertical)
Pump Type Double-entry, axially split case centrifugal
Flow Rate Range Up to 12,000 m³/hr
Head Range Up to 170 m
Motor Power Range 7.5 – 1,250 kW
Connection Diameter DN 100 – DN 700
Casing Material Cast iron / Ductile iron / Carbon steel
Impeller Type Double-entry closed impeller
Shaft Seal Mechanical seal / Packed gland (application-specific)
Frequency 50 Hz / 60 Hz
Voltage 3 x 380–415 V (standard); HV on request
Max Liquid Temp Up to +140°C
Efficiency Class IE3 / IE4 motor efficiency

The PT HHM Batam Authorized Advantage

Large-capacity split-case pumps represent multi-hundred-million Rupiah capital decisions. PT HHM Engineering Solutions, as Batam’s only Grundfos Authorized Dealer, provides CAPEX-backed technical justification reports, lifecycle cost analyses, and direct factory liaison for custom hydraulic configurations. Our 35+ year Singapore parent lineage means we navigate Grundfos factory lead times expertly — coordinating port-to-warehouse delivery to your Batam or Riau Islands project site. Contact our engineering team: +62 778 489 3282 | hhm@hhmpt.co.id

Brand

Grundfos

Grundfos adalah merek pompa asal Denmark yang telah berdiri sejak 1945 dan diakui sebagai produsen pompa terbesar di dunia. HHM Engineering merupakan distributor resmi pompa Grundfos di Batam yang menyediakan stok lengkap untuk berbagai kebutuhan industri, gedung komersial, dan infrastruktur. Varian Pompa Grundfos yang Tersedia Pompa Grundfos tersedia dalam berbagai tipe untuk memenuhi kebutuhan yang beragam. Untuk sistem distribusi air industri, tersedia seri NB dan NK sebagai pompa sentrifugal horizontal end-suction berkapasitas besar. Selain itu, seri CM dan CME hadir sebagai pilihan pompa multi-stage horizontal yang efisien. Untuk sistem inline dan sirkulasi gedung, seri TP, TPE, dan TPD menawarkan solusi pompa vertikal inline yang hemat ruang. Sementara itu, seri CR, CRN, CRE, dan CRNE dirancang sebagai pompa multi-stage vertikal untuk tekanan tinggi. Bagi kebutuhan kapasitas besar, seri LS dan LSV hadir sebagai pompa split case yang andal. Aplikasi Pompa Grundfos Pompa Grundfos dapat diaplikasikan pada berbagai sektor industri. Di sektor gedung komersial, Grundfos Hydro Multi tersedia sebagai paket booster set otomatis. Untuk sumur dalam dan pengolahan air bersih, seri SP dan SP-N menawarkan solusi pompa celup borehole yang handal. Selain itu, seri DDA, DDC, DMH, dan DMX tersedia sebagai pompa dosing presisi untuk kebutuhan water treatment dan industri kimia. Untuk aplikasi air limbah, seri Unilift SE dan SL hadir sebagai solusi pompa celup sewage yang efektif. Mengapa Memilih HHM Engineering sebagai Distributor Grundfos di Batam? HHM Engineering menyediakan pompa Grundfos original bergaransi resmi dengan stok tersedia di gudang Batam. Oleh karena itu, proses pengiriman dapat dilakukan lebih cepat ke seluruh Kepulauan Riau dan Indonesia. Selain itu, tersedia juga spare part dan service kit genuine Grundfos untuk memastikan performa pompa tetap optimal. Tim engineering kami siap memberikan konsultasi teknis gratis untuk membantu pemilihan pompa yang tepat sesuai kebutuhan.
