Description
Engineering Application & Overview

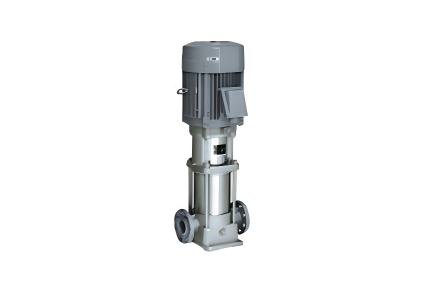

The Kawamoto KVS Series is a vertical in-line multi-stage centrifugal pump that delivers high head performance in a compact, space-saving inline configuration — eliminating the need for separate base plates or pump rooms. The stacked-stage hydraulic design generates heads up to 240 m for high-pressure water supply applications in industrial and commercial settings. KVS excels in constant-pressure booster service for buildings and industrial plants, chemical feed pressurization, cooling water supply under high static head, and reverse osmosis membrane feed where consistent pressure is critical to membrane life and output quality.
Technical Specifications Table
| Parameter | Specification |
|---|---|
| Series | KVS |
| Pump Type | Vertical inline multi-stage centrifugal |
| Flow Rate Range | Up to 50 m³/hr |
| Head Range | Up to 240 m |
| Motor Power Range | 0.75 – 22 kW |
| Connection Diameter | DN 32 – DN 65 |
| Casing Material | FC200 cast iron / Stainless steel |
| Frequency | 50 Hz / 60 Hz |
| Voltage | 3 x 380–415 V |
The PT HHM Batam Authorized Advantage
As the Authorized Kawamoto Dealer in Batam, PT HHM Engineering Solutions provides KVS pumps from local stock for high-pressure booster applications across Kepulauan Riau industrial and commercial sites. Factory-direct pricing. Contact: +62 778 489 3282.
