Engineering Application & Overview

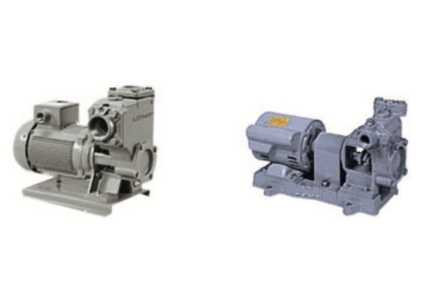

Kawamoto CS and CHS Cascade Self-Priming pumps combine the air-handling capability of a self-priming design with the high-head performance of a multi-stage cascade hydraulic arrangement. This dual capability — self-prime at start-up AND high discharge pressure — makes CS/CHS unique for applications requiring both reliable automatic re-priming and elevated output pressure without a separate pressure booster stage. Ideal applications include high-head water supply to elevated storage tanks on hillside industrial sites, fire suppression system pressurization in multi-story structures across Batam’s expanding commercial districts, and high-head agricultural irrigation in elevated terrain throughout Kepulauan Riau.
Technical Specifications Table
| Parameter | Specification |
|---|---|
| Series | CS, CHS |
| Pump Type | Horizontal cascade self-priming multi-stage |
| Flow Rate Range | Up to 120 m³/hr |
| Head Range | Up to 250 m |
| Motor Power Range | 1.5 – 37 kW |
| Connection Diameter | DN 32 – DN 80 |
| Casing Material | FC200 cast iron |
| Stage Count | 2 – 8 stages (model-dependent) |
| Priming Suction Lift | Up to 6 m |
| Frequency | 50 Hz / 60 Hz |
| Voltage | 3 x 380–415 V |
The PT HHM Batam Authorized Advantage
PT HHM Engineering Solutions is the Authorized Kawamoto Dealer in Batam, providing local access to the CS/CHS series with technical selection support and stocked spares. Factory-direct pricing with Batam warehouse fulfillment. Contact our engineering team: +62 778 489 3282 | hhm@hhmpt.co.id
