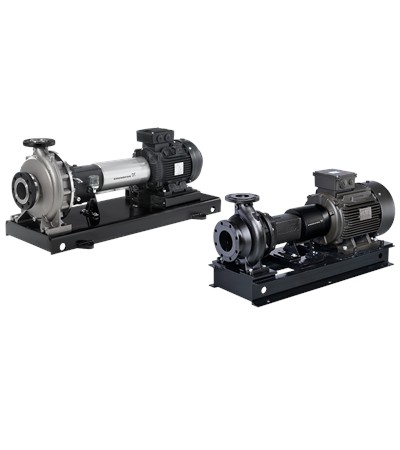

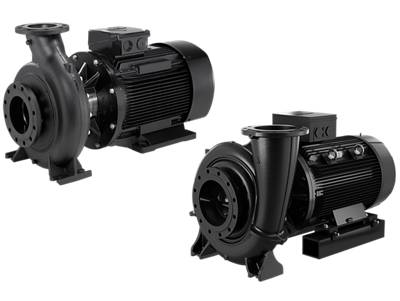

Pompa Grundfos NB NK NKG NBGE – Horizontal End-Suction Centrifugal Pump Batam

  • Max Flow Rate: Up to 4,600 m³/hr (model-dependent)
  • Max Head: Up to 170 m (model-dependent)
  • Motor Power: 0.12 – 200 kW
  • Connection Size: DN 25 – DN 500 (25 mm – 500 mm)
grundfos

Description

Engineering Application & Overview

The Grundfos NB, NK, NKG, and NBGE Series are EN 733 / ISO 2858-compliant horizontal, end-suction, back-pull-out centrifugal pumps engineered for the most demanding fluid transport requirements in industrial and commercial facilities. Designed on the principle of radial-flow centrifugal hydrodynamics, the double-volute casing geometry minimizes radial thrust loads at off-BEP operating points — critical for sustaining bearing and mechanical seal life across the 24/7 duty cycles typical in Batam manufacturing zones and municipal water systems. The NK and NKG variants feature a close-coupled motor flange for space-constrained installations, while the NB frame-mounted variant allows independent motor replacement. Ideal applications include: general industrial water supply and recirculation, cooling water systems for shipyard dry-dock equipment, HVAC chilled/hot water loops, pressure boosting for PT Air Batam Hulu water distribution networks, and process water transfer at Batam Industrial Park facilities.

Technical Specifications Table

Parameter Specification
Series NB, NK, NKG, NBGE
Pump Type Horizontal, end-suction, back-pull-out centrifugal
Standard Compliance EN 733 / ISO 2858
Flow Rate Range Up to 4,600 m³/hr
Head Range Up to 170 m
Motor Power Range 0.12 – 200 kW
Connection Diameter DN 25 – DN 500
Casing Material Cast iron / Stainless steel (model variant)
Impeller Type Closed radial-flow impeller
Frequency 50 Hz / 60 Hz
Voltage 3 x 380–415 V / 1 x 220–240 V
Max Liquid Temperature -40°C to +140°C (seal-dependent)
Insulation Class F (standard)
IP Rating IP55

The PT HHM Batam Authorized Advantage

PT HHM Engineering Solutions is the sole Authorized Grundfos Dealer operating from Batam, established as the Indonesian subsidiary of Huat Hoe Machinery & Trading Pte Ltd (Singapore, since 1990). This means every NB/NK/NKG/NBGE pump procured through PT HHM carries a genuine OEM Grundfos warranty, not a grey-market substitute. Procurement teams at Marco Polo Shipyard, PaxOcean, PT United Sindo Perkasa, and PT Air Batam Hulu trust PT HHM for rapid ex-stock fulfillment directly from our Batam warehouse — eliminating Singapore freight lead times and import agent markups. Our in-house engineers provide on-site sizing consultation, pump curve analysis, and commissioning support across Kepulauan Riau. Contact us for immediate availability and factory-direct pricing: +62 778 489 3282 | hhm@hhmpt.co.id

Brand

Grundfos

Grundfos adalah merek pompa asal Denmark yang telah berdiri sejak 1945 dan diakui sebagai produsen pompa terbesar di dunia. HHM Engineering merupakan distributor resmi pompa Grundfos di Batam yang menyediakan stok lengkap untuk berbagai kebutuhan industri, gedung komersial, dan infrastruktur. Varian Pompa Grundfos yang Tersedia Pompa Grundfos tersedia dalam berbagai tipe untuk memenuhi kebutuhan yang beragam. Untuk sistem distribusi air industri, tersedia seri NB dan NK sebagai pompa sentrifugal horizontal end-suction berkapasitas besar. Selain itu, seri CM dan CME hadir sebagai pilihan pompa multi-stage horizontal yang efisien. Untuk sistem inline dan sirkulasi gedung, seri TP, TPE, dan TPD menawarkan solusi pompa vertikal inline yang hemat ruang. Sementara itu, seri CR, CRN, CRE, dan CRNE dirancang sebagai pompa multi-stage vertikal untuk tekanan tinggi. Bagi kebutuhan kapasitas besar, seri LS dan LSV hadir sebagai pompa split case yang andal. Aplikasi Pompa Grundfos Pompa Grundfos dapat diaplikasikan pada berbagai sektor industri. Di sektor gedung komersial, Grundfos Hydro Multi tersedia sebagai paket booster set otomatis. Untuk sumur dalam dan pengolahan air bersih, seri SP dan SP-N menawarkan solusi pompa celup borehole yang handal. Selain itu, seri DDA, DDC, DMH, dan DMX tersedia sebagai pompa dosing presisi untuk kebutuhan water treatment dan industri kimia. Untuk aplikasi air limbah, seri Unilift SE dan SL hadir sebagai solusi pompa celup sewage yang efektif. Mengapa Memilih HHM Engineering sebagai Distributor Grundfos di Batam? HHM Engineering menyediakan pompa Grundfos original bergaransi resmi dengan stok tersedia di gudang Batam. Oleh karena itu, proses pengiriman dapat dilakukan lebih cepat ke seluruh Kepulauan Riau dan Indonesia. Selain itu, tersedia juga spare part dan service kit genuine Grundfos untuk memastikan performa pompa tetap optimal. Tim engineering kami siap memberikan konsultasi teknis gratis untuk membantu pemilihan pompa yang tepat sesuai kebutuhan.
