Description
Engineering Application & Overview

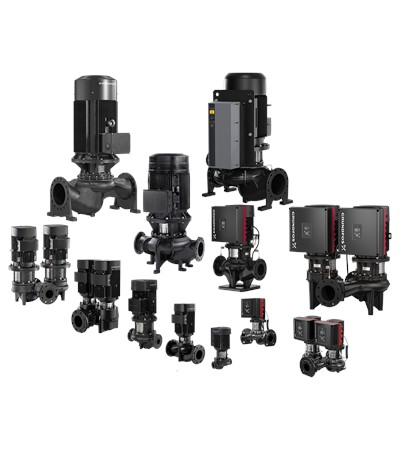

The Grundfos TP, TPE, and TPD Series are single-stage, vertical in-line centrifugal pumps conforming to EN 733. Their in-line port design simplifies pipe routing in tight plant rooms, eliminating the need for eccentric reducers and minimising installation time — a key advantage for fast-track shipyard maintenance projects under mobilization pressure. The TPE variant features an integrated E-motor with built-in frequency converter and PI-controller, enabling automatic pressure or differential pressure regulation. TPD twin-head models provide built-in redundancy — vital for uninterrupted operations at critical facilities like PT Air Batam Hulu water treatment plants. Typical applications: HVAC hot and chilled water circulation, cooling tower supply, industrial process water, bilge and ballast water transfer support systems.
Technical Specifications Table
| Parameter | Specification |
|---|---|
| Series | TP, TPE, TPD |
| Pump Type | Vertical inline single-stage centrifugal |
| Standard Compliance | EN 733 |
| Flow Rate Range | Up to 1,800 m³/hr |
| Head Range | Up to 145 m |
| Motor Power Range | 0.12 – 110 kW |
| Connection Diameter | DN 32 – DN 300 |
| Casing Material | Cast iron / Nodular cast iron |
| Impeller | Bronze / Cast iron / Stainless steel (variant-dependent) |
| Frequency | 50 Hz |
| Voltage | 3 x 380–415 V |
| Max Liquid Temp | Up to +120°C |
| Insulation Class | F |
| IP Rating | IP55 |
| TPE Speed Control | Integrated E-motor with PI controller |
| TPD Configuration | Twin-head for built-in redundancy |
The PT HHM Batam Authorized Advantage
PT HHM Engineering Solutions, as the exclusive Grundfos Authorized Dealer in Batam, sources TP/TPE/TPD pumps directly through the factory supply chain established by our Singapore parent Huat Hoe Machinery since 1990. Procurement from PT HHM means factory-certified units, genuine OEM shaft seals and impellers, and a local engineer who can verify hydraulic sizing before you order. Available from our Batam Kota branch with urgent-delivery capability for shipyard mobilization timelines. Contact: +62 778 489 3282.
