Engineering Application & Overview
Horton Gear Pumps are external or internal gear positive displacement pumps that generate precise, pulsation-low flow output regardless of differential pressure — the defining characteristic that makes gear pumps the standard solution for high-viscosity fluid transfer, hydraulic power unit supply, and precision lubrication oil circulation. Unlike centrifugal pumps, gear pump output is independent of system back-pressure within rated limits, making them ideal for fuel oil booster service on vessels, hydraulic system charge pumps in shipyard heavy-lift equipment, lubricating oil circulation in compressors and gearboxes, and high-viscosity chemical transfer in industrial plants. The wide viscosity handling range — from water-thin solvents to heavy fuel oil — makes Horton gear pumps the universal positive displacement solution across Batam’s diverse industrial base.
Technical Specifications Table
| Parameter | Specification |
|---|---|
| Brand | Horton |
| Pump Type | External / Internal gear positive displacement |
| Max Flow Rate | Up to 800 L/min |
| Max Differential Pressure | Up to 200 bar |
| Viscosity Range | 1 – 100,000 cSt |
| Connection Size | ½″ – 4″ BSP/NPT |
| Gear Material | Steel / Stainless steel / Cast iron |
| Shaft Seal | Mechanical seal / Lip seal (model-dependent) |
| Drive | Direct-coupled electric motor / Belt drive / Engine drive |
| Temperature Range | -20°C to +200°C (fluid-dependent) |
| Frequency | 50 Hz / 60 Hz |

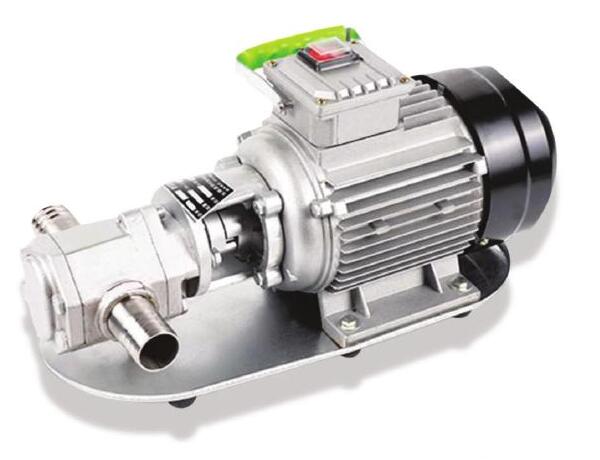

GSS/GSC Portable Skid-Mounted Model Range
The Horton GSS/GSC series is a compact, plug-and-play portable gear pump line — motor pre-coupled on a carrying skid — for lube oil and fuel transfer where a fixed installation isn’t practical:
| Model | Capacity | Connection | Motor Power | Material |
|---|---|---|---|---|
| GSS4-0.75 | 37.5 L/min | 1″ | 0.75 kW | Stainless steel |
| GSS4-1.5 | 60 L/min | 1″ | 1.5 kW | Stainless steel |
| GSC4-0.75 | 37.5 L/min | 1″ | 0.75 kW | Cast iron |
| GSC4-1.1 | 60 L/min | 1″ | 1.1 kW | Cast iron |
| GSC2-2.2 | 180 L/min | 1-1/2″ | 2.2 kW | Cast iron |
Nominal pressure 0.3 MPa (3 bar); single phase 220/230V, 50/60Hz; female threaded connections with hose-end adapters included; design suction pressure 4 m.
The PT HHM Batam Authorized Advantage
PT HHM Engineering Solutions distributes Horton positive displacement gear pumps — including the portable GSS/GSC skid-mounted range — to hydraulic system integrators, vessel owners, and industrial plant operators across Kepulauan Riau. Our engineers provide gear pump selection based on viscosity, differential pressure, and temperature — critical parameters that determine correct running clearances. Stocked in Batam for rapid delivery. Visit the HHM Engineering homepage for our full range of pump products. Contact: +62 778 489 3282.
