Description
Engineering Application & Overview

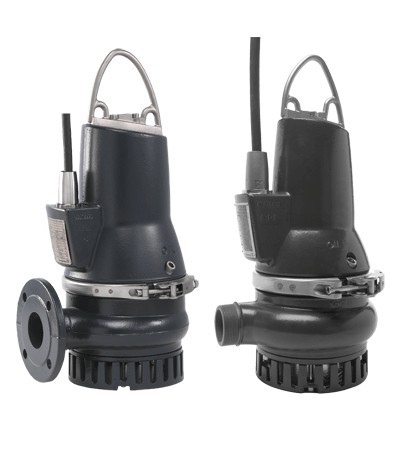

Grundfos Unilift, DP, DPK, SE, and SL Series cover the full spectrum of submersible sewage and wastewater pump applications, from portable residential sump drainage (Unilift) through to large municipal sewage lift stations (SL1/2). The SE series features the S-tube impeller geometry, engineered to pass solid particles up to 65 mm diameter without clogging — the definitive solution for raw sewage handling in Batam’s developing residential and industrial waste infrastructure. The SL series with N-impeller is optimised for fibrous and stringy waste, making it suitable for shipyard sanitary waste systems and grey water management aboard vessels under maintenance at Marco Polo and PaxOcean facilities. Built-in moisture detection and thermal protection minimize unattended pump failures.
Technical Specifications Table
| Parameter | Specification |
|---|---|
| Series | Unilift, DP, DPK, SE, SL |
| Pump Type | Submersible sewage / wastewater centrifugal |
| Flow Rate Range | Up to 1,600 m³/hr (SL) |
| Head Range | Up to 40 m |
| Motor Power Range | 0.25 – 100 kW |
| Discharge Diameter | DN 40 – DN 300 |
| Solid Handling (SE) | Up to 65 mm free passage |
| Impeller Type | S-tube (SE) / N-impeller (SL) / Vortex (DPK) |
| Motor Protection | Thermal + moisture sensor (standard) |
| Casing Material | Cast iron (standard); SS on request |
| Frequency | 50 Hz / 60 Hz |
| Voltage | 1 x 220–240 V / 3 x 380–415 V |
| IP Rating | IP68 (fully submersible) |
| Max Liquid Temp | +40°C continuous / +60°C intermittent |
The PT HHM Batam Authorized Advantage
Sewage pump failure causes immediate, costly operational disruption. PT HHM Engineering Solutions stocks Grundfos submersible sewage pumps in Batam for same-day emergency supply, backed by our status as the sole Authorized Grundfos Dealer in Batam. Our technical team can advise on wet well sizing, auto-coupling systems, and pump control panels for permanent lift station installations across Kepulauan Riau. Contact: +62 778 489 3282.
