Engineering Application & Overview

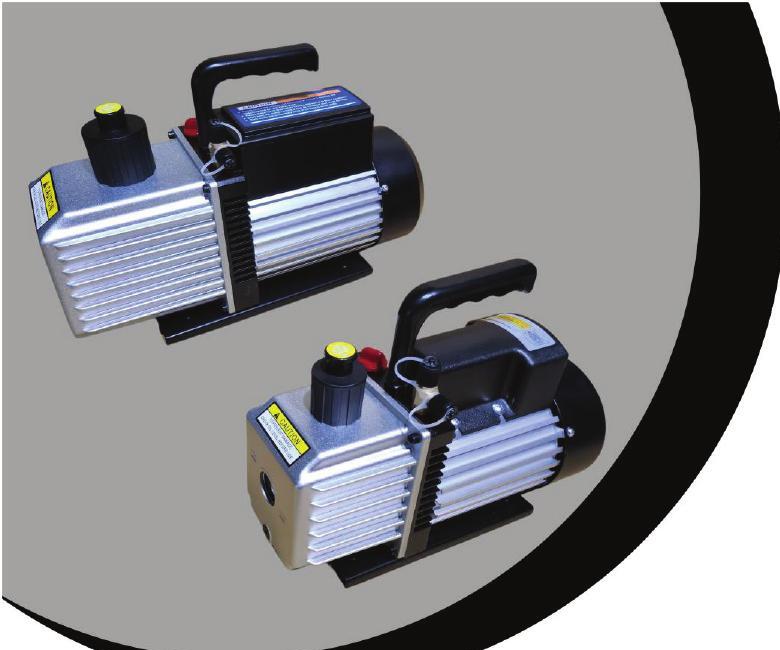

Hurmac Rotary Vane Vacuum Pumps and refrigeration accessories are purpose-designed for air conditioning, refrigeration, and heat pump system installation, service, and commissioning. Achieving deep vacuum levels down to 50 microns (5 Pa absolute), Hurmac vacuum pumps evacuate refrigerant circuits to the required deep vacuum before refrigerant charging — eliminating residual moisture and non-condensable gases that would otherwise cause compressor acid burnout and system inefficiency. This deep vacuum capability is critical for large commercial refrigeration systems, shipboard reefer cargo systems, and industrial chiller plant maintenance at Batam’s cold chain facilities and vessel reefer systems under service at Kepulauan Riau shipyards. The companion brass manifold gauge set and service tools complete the refrigeration technician toolkit supplied by PT HHM.
Technical Specifications Table
| Parameter | Specification |
|---|---|
| Brand | Hurmac |
| Series | DV Series (DV50, DV75, DV100) |
| Pump Type | Two-stage rotary vane vacuum |
| Max Vacuum | 0.3 Pa (0.003 mbar) |
| Air Displacement | 5 – 12 CFM (142 – 340 L/min) |
| Motor Power | 0.5 – 1 HP |
| Oil Volume | 350 – 600 mL |
| Suction Fitting | 1/2″ & 1/4″ flare |
| Dimensions | 320x140x240mm – 390x150x280mm |
| Weight | 12 – 18 kg |
| Compatible Refrigerants | R12, R22, R404A, R134a, R410A, R32 and others |
| Power Supply | Single phase, 60 Hz, 100-120V / 220-240V |
| Accessories | Brass manifold gauge set available (R12, R22, R404A, R134A) |
The PT HHM Batam Authorized Advantage
PT HHM Engineering Solutions stocks Hurmac vacuum pumps and refrigeration service accessories in Batam for immediate supply to HVAC/R technicians and shipboard refrigeration engineers across Kepulauan Riau. Our local stock of vacuum pump oil, replacement vanes, and manifold gauge sets supports rapid equipment servicing. Visit the HHM Engineering homepage for our full range of marine and industrial equipment. Contact: +62 778 489 3282.
